Scovill Mfg. Co.
Dry Plate Outfit (#A-C)
Date Introduced: - ; Years Manufactured: c. 1882
Construction: rear focus
via push-pull; no swing; reversing by two tripod mounts; three-piece
lensboard
Materials: brass hardware, black
fabric bellows
Sizes Offered: #A=4x5; #B=5x8; #C=5x8 stereo and single
Notes: These are described as light, compact and easy to
carry about. The beds probably folded, although the catalog is mute on that point.
All came with Waterbury lenses with flange, . These appear to be identical to the Dry
Plate Equipments #1-3, except that #1-3 were advertised to have single achromatic
lenses instead of Waterbury (single achromatic) lenses. The A-C and 1-3 were the
same prices, but since they are advertised in the same catalog on successive pages, there

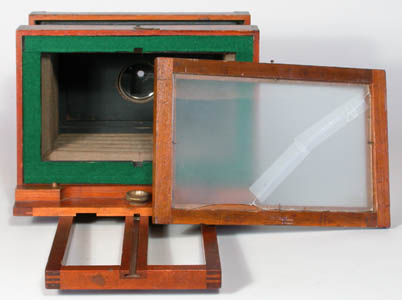

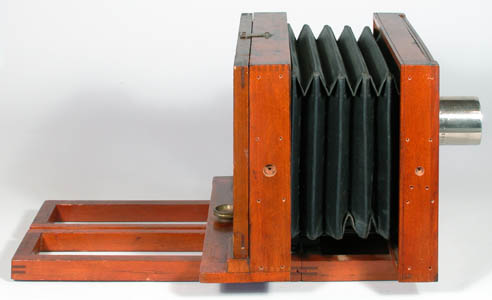

probably was some difference. The above photos are of a 5x8" camera. It may or
may not be this model, but it does match the known features, and, without a reliable
engraving to go by, identification is tentative. Parts of this camera are made of a
fleck-figured wood (shown above), which is quarter-sawn
sycamore. This wood
is also found on the Scovill New York (601-603)
Camera. This camera is almost identical to the 5x8" Putnam Marvel, except that the Marvel has single swing,
whereas this camera has no swing. Its Waterbury lens has insertable stops held in
place by a wire spring, visible in photo 3 above. The bed lock is via a thumbscrew
rather than patent side clamps, which may mean that it was made prior to the patent
(20Oct1885), or merely that this is a cheaply made camera that doesn't rate patent clamps.
The base on this camera is long; when folded up, it extends at least 2" above
the top of the camera. Most cameras of "tailboard" construction possess
bases that reach exactly the top of the camera when folded, thereby being more compact.
The case has been made taller to accommodate the height. This camera has
interior slots to fit a septum, and so could be used as a stereo camera.
References:
Walsl Cat., 1882, p. 51
